SATURNsump for general purpose
Main pumped products
Composition
V1G | Standard vinyl ester resin
The ideal solution for the major part of corrosive agents containing acids, alkalies, detergents, seawater, brine, etc.
Thermoplastic resins, unlike thermoplastic products, are no longer precessable after the catalysis process. This chemical property guarantees better mechanical properties, heat and dimensional stability, and longer durability.
Fiberglass makes it possible to design at best the most mechanical stressed parts. It also ensures an excellent chemical resistance of the surfaces in contact with pumped fluids
Request info
-

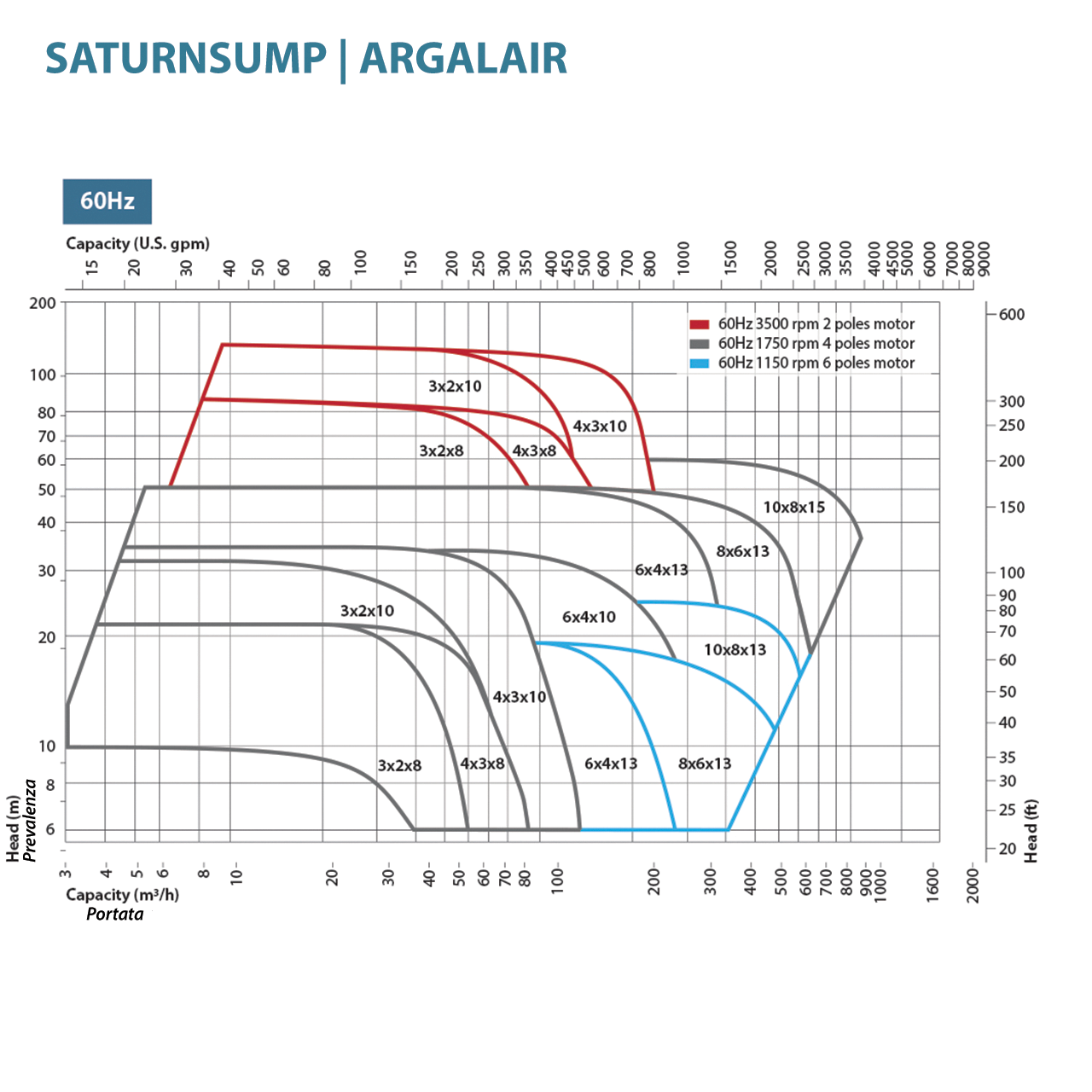

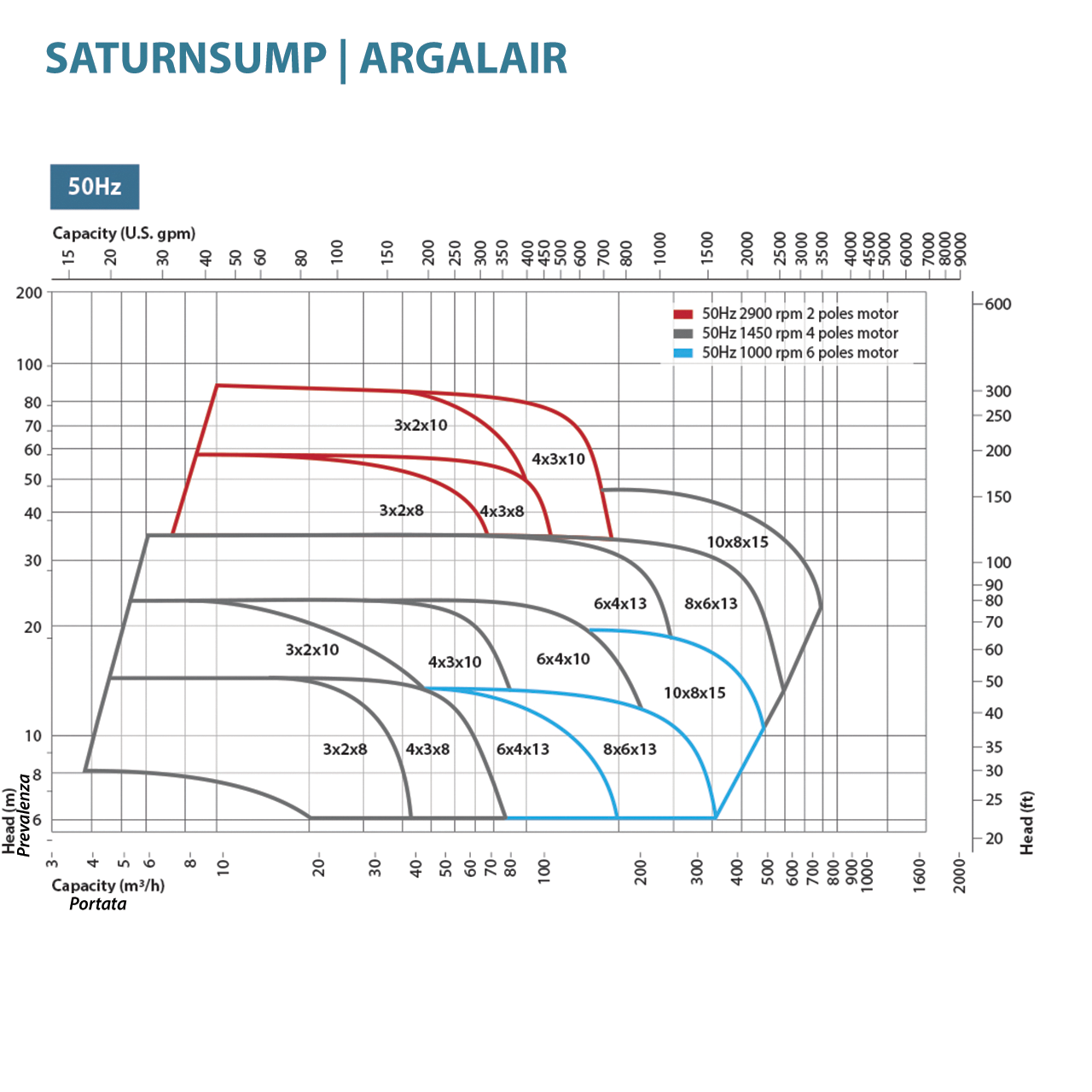

Capacities up to 900m3/h
-
Column length up to 5m length
-
Excellent mechanical strength and chemical resistance
-
Vynilester resin reinforced with fiberglass is free from liquid aggression (corrosion) and therefore does not release particles and substances that can alter the liquid
-
Performance efficiency superior to 80% guaranteeing high-quality consistent over time
-
Components are made of FRP (column, support, aspiring piping tube)
-
Screws are available in AISI 316 or FRP
-
Impeller made of FRP reinforced with carbon fiber for more strength (cavitation issues are reduced at minimum)
-
Upon request:
ATEX Zone 2 (II 3G Ex h IIB T4 Gb X) -
Different mechanical seals are available
-
External, single, or double flushing
-
FRP accessories to empower or adapt the pump to any plant
-
Flanges reinforced with Kevlar (more resistant)
-
On request: color your pump!
Applications
-
Aquarium, zoos, aquatic parks
-
Aquaculture
-
Desalination
-
Seawater processes
-
Chemical processes
-
Power plant
-
Metal treatments
-
Oil & gas industry
-
Pharmaceutical industry
-
Mineral industry
-
Water and wastewater treatments
