DQS 100
Main pumped products
Composition
The QUANTUM-S 100 sets the benchmark for efficiency and reliability, empowering you to meet your carbon footprint targets and sustainability commitments. As a state-of-the-art solution tailored for the semiconductor industry, it combines advanced technology with environmental responsibility to help you stay ahead in a competitive market. Engineered and designed with the highest precision and attention to detail, the series offers superior features for no-stop recirculation and supply applications. Premium PTFE and PFA materials, paired with an innovative flow path, guarantee ultra-pure transfer and unmatched chemical compatibility. The robust non-metallic air chamber and advanced non-stalling air distribution system deliver flawless, reliable operation—even in the harshest conditions. High-pressure, closed-discharge valves or corrosive acid-vapour environments are handled with ease, ensuring continuous performance and total peace of mind.
Request info
-
Non-stall Air Distribution System (restarts under full backpressure, dead-heads without stalling)
-
All PTFE/ PFA flow path (no metal touces the fluid, at any point)
-
Improved check valve design (avoids and minimises cavitation issues)
-
Replaceable shaft bushing (the wear part is serviced, not the pump)
-
Non-metallic air section (installs inside acid vapor extraction)

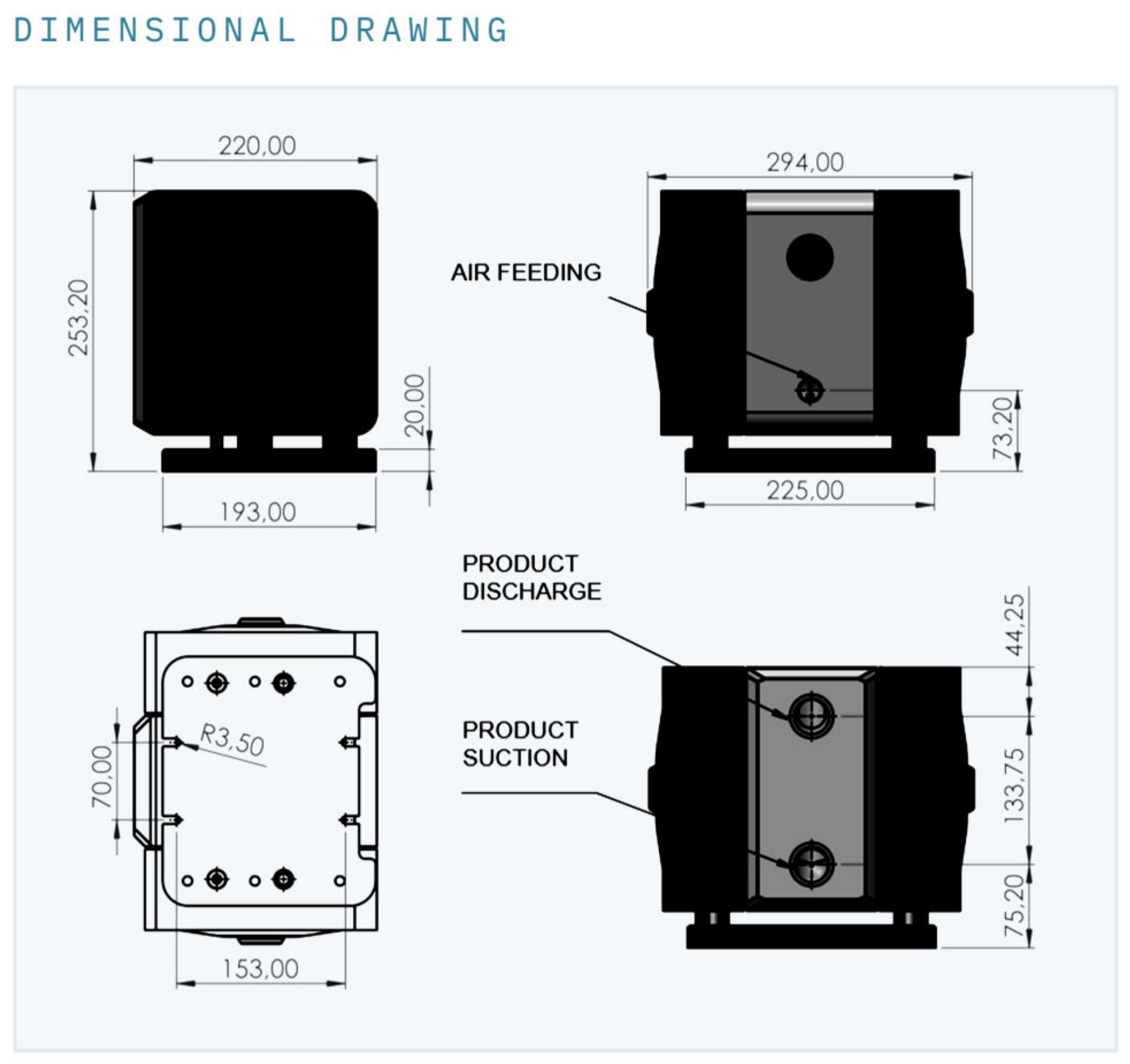

Dimensions in mm.
