DDS 100

Main pumped products

Composition

PE 1000

High molecular weight Polyethylene offers an excellent resistance to abrasion and shocks. It has nonstick and auto-lubricating properties as well as optimal mechanical characteristics, also in cryogenic conditions.

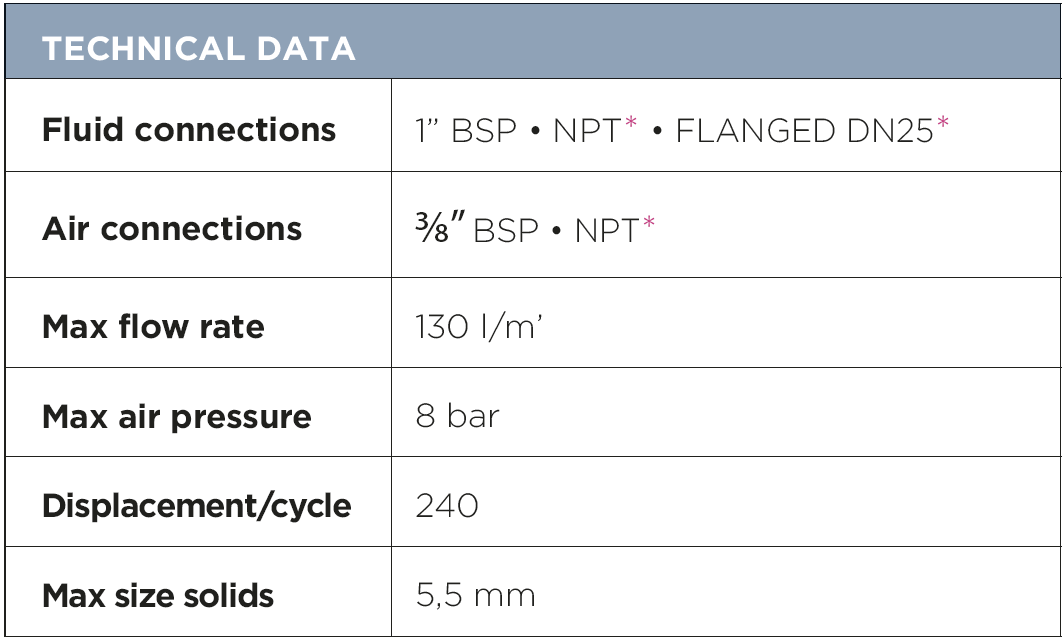

Technical data



Request info

CaptchaRefresh Code

  • Very high performance

  • Optimized air consumption

  • Evolved diaphragm caps

  • Free-ice system that also increases the performance and keeps the air consumption low

  • Optimized internal design for easing the transfer of viscous and charged liquids.

  • Very-fast pneumatic exchanger

  • Improved operating sensitivity (from 1 bar)

  • Non-stalling

  • PE1000: highly resistance material with low friction coefficient and temperature range from -40°c to 70°c

  • TFM diaphragms inert to chemical agents

  • Diaphragms available in thermoplastic rubber (TPE, TPV) and reinforced elastomers (FKM, EPDM, NBR)

  • Ergonomic fixing

  • Easy maintenance

  • Ideal for shear sensitive liquids

  • Dry-running

  • Self-priming

  • Upon request: ​ ATEX Zone 2 (II 3G Ex h IIB T4 Gb X | II 3D Ex h IIB T135°C Db X)
